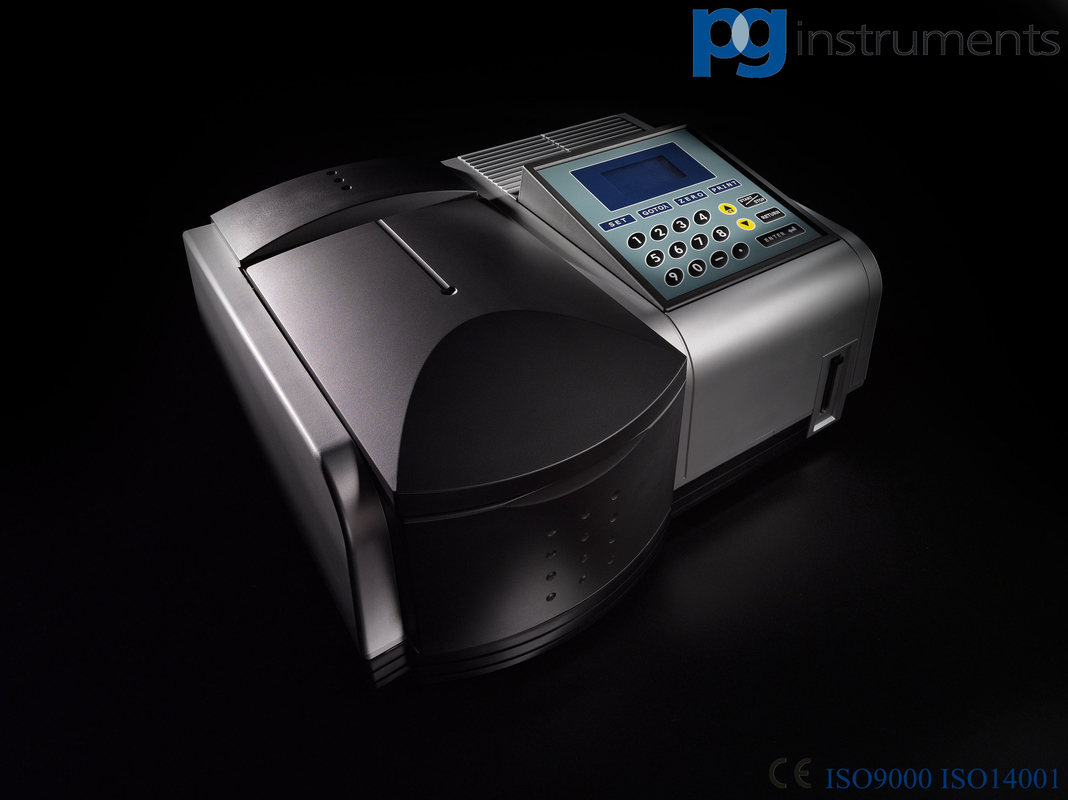

T60U UV-Vis Spectrophotometer For Environmental Monitoring，2nm Spectral Bandwidth

Large Image : T60U UV-Vis Spectrophotometer For Environmental Monitoring，2nm Spectral Bandwidth Get Best Price

Product Details:

Brand Name:	PG instruments
Certification:	CE
Model Number:	T60U UV-Vis Spectrophotometer

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Contact for a Quote
Packaging Details:	Carton package, 550x500x350mm, 16kg
Delivery Time:	Contact for confirmation
Payment Terms:	T/T, L/C
Supply Ability:	2500 units per year

Contact Now

Detailed Product Description

High Light:

metal analysis spectrometer

Heavy Metal Analyzer

2nm Spectral Bandwidth UV-Vis Spectrophotometer T60U for Environmental Monitoring

Features & Functions

High performance fixed 2nm spectral bandwidth
Low stray light 0.05%T
Wavelength accuracy +1nm
Holographic blazed grating 1200lines/mm
Local control software for photometric fixed wavelength measurement
Easily upgraded to include quantitative analysis, multi wavelength spectrum & kinetics
Built in cell holder storage
Robust modular design with a small footprint
Can be used with UV Win Software (optional). CFR21 Part 11 Software Options are available

Applications:

Education in universities and colleges
Environmental monitoring & control
Food & Beverage production and quality control
Agricultural monitoring
Geology & Metallurgy
Gas & oil

Specifications:

Optical system	Split beam ratio
Scan speed	Selectable
Wavelength range	190-1100nm
Wavelength accuracy	+1nm
Wavelength reproducibility	≤0.2nm
Spectral bandwidth	2nm
Photometric mode	Transmittance, Absorbance, Energy
Photometric range	-0.3-3.0Abs
Photometric accuracy	0.002A (0-0.5A), 0.004A (0.5-1A), 0.3%T (0-100%T)
Photometric reproducibility	00.001A(0-0.5A), 0.002A(0.5-1A), 0.15%T(0-100%T)
Photometric noise	0.001A(500nm) 30min warm-up
Baseline flatness	0.002A(200-1000nm)
Baseline stability	0.001A/h (500nm, 0Abs), 2hr warm-up
Stray light	≤0.05%T(220nm NaI, 340nm NaNO2)

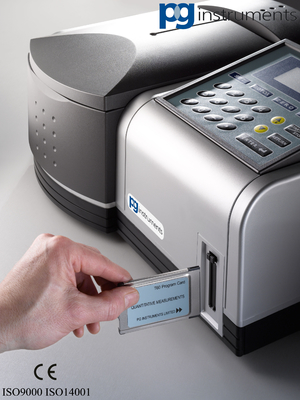

Standard functionality	Photometric Measurement (Quantitative, Multi-wavelength, Spectrum and Kinetic measurements with program cards)
Detector	Silicon photo diode
Light source	Tungsten Halogen and Deuterium arc lamps

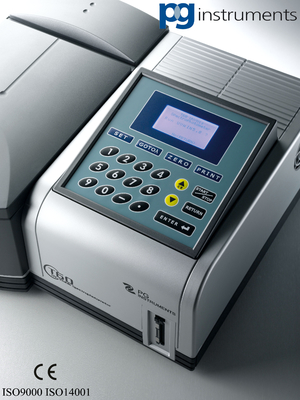

Display	Digital LCD display
Printer	Mini printer
PC interface	RS232
Software support	Local and UV Win
Power supply	Switch mode 95-250VAC 50-60Hz
Weight	11kg
Dimension	476x362x225mm

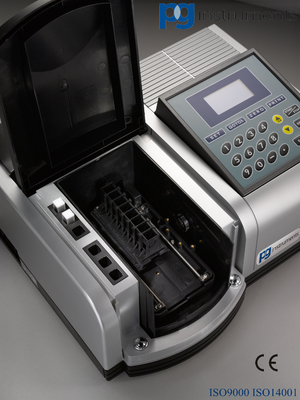

T60U (UV-Visible) is a split beam system operating within a wavelength range of 190-1100nm. The instrument has a switched model power supply accepting voltages in the range of 95-240V AC and supplied with either universal path length 5 cell changer or fixed path length 8 cell changer as standard. T60U delivers the functionality and accuracy of an advanced instrument at an affordable price.

High quality optical components ensure reliable analytical data with low stray light achieved using very low noise electronic circuits.

Deuterium and tungsten light source deliver superior stability across the full wavelength range. Both types of lamp have self timers and are inexpensive and easy to replace when required.

The monochromator is completely sealed and the optical surfaces can be easily cleaned to maintain optimum reflectivity over the lifetime of the instrument.

A maintenance free high resolution direct stepper drive positions the grating precisely, which ensures reproducible wavelength scanning at different scan speed, thus negating any wavelength peak shift.

The Spectrophotometer shell is made from an environmentally friendly non corrosive material and a simple retaining mechanism on the base allows easy access for air filter changes and routine maintenance.

Standard Accessories

Quantitative program card

2x10mm quartz cells

Black block

Mains power lead

2A fuse

Dust cover

Operators manual

Calibration and system documentation

Optional Accessories & Consumables

Multi wavelength program card

Scanning and Kinetics program card
