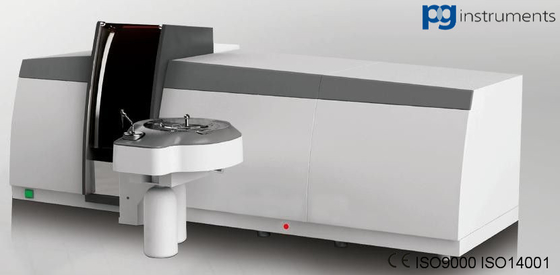

AA500F High Performance Flame Atomic Absorption Spectrometer AA500F with 8-Lamp Turret

AA500F High Performance Flame Atomic Absorption Spectrometer AA500F with 8-Lamp Turret

large.img.alt
small.img.alt small.img.alt

Large Image :  AA500F High Performance Flame Atomic Absorption Spectrometer AA500F with 8-Lamp Turret Get Best Price

Product Details:
Brand Name: PG instruments
Certification: CE
Model Number: AA500F Atomic Absorption Spectrometer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Contact for a quote
Packaging Details: Carton package
Delivery Time: Contact for confirmation
Payment Terms: T/T,L/C
Supply Ability: 1500 units per year
Detailed Product Description
High Light:

Flame Atomic Absorption Spectrometer

,

Split Beam Spectrophotometer

Flame AA System AA500F 0.1, 0.2, 0.4, 1.0, 2.0nm Atomic Absorption Spectrophotometer

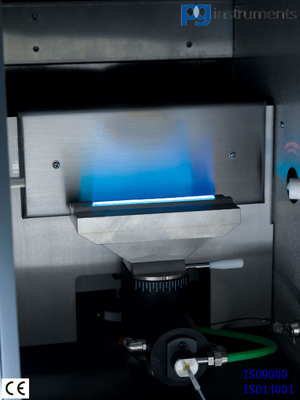

The flame atomizer offers three flame options: Air/Acetylene is the standard configuration with the N2O/acetylene and Air/LPG as options.



Air/Acetylene
The Air/Acetylene flame uses a 100mm single slot burner for the standard configuration
The high sensitivity (Cu 2ppm>0.280Abs) is due to the efficiency of the fixed position glass nebulizer fitted as standard. An acid resistant replacement is available as an option.
The flame can be easily set from blue lean flame through stoichiometric to fuel rich by means of computer control




N2O/Acetylene
The N2O/Acetylene flame uses a 50mm single slot burner and is available as an optional extra.
This flame configuration is used to measure elements less prone to ionization such as Aluminum, Tin, Titanium, Calcium, Vanadium and Molybdenum.
Switching from Air/Acetylene to N2O/Acetylene to Flame Off is fully controlled by the AAWin Pro software




Air/Propane (LPG)
This flame uses a 3 slot burner and with the low pressure requirement it is also much safer to operate
Due to the low temperature of the flame it is ideal for analyzing alkali metals such as Potassium, Sodium and Lithium, especially when used in the emission mode.
Some remote areas of the world have difficulty obtaining Acetylene gas of a high enough purity to operate the flame correctly. LPG can give a real alternative and offer comparable results for most elements throughout the wavelength range.




Safety Features
Pressure monitoring for all gases
Burner identification
Flame sensor
Drain trap level sensor
Gas leak detector
Over pressure in premix
Safety cut off switch




Applications:

Agricultural
Clinical
Environmental
Food
Metal
Mining
Geological
Pertrochemical
Pharmaceutical



Specifications:



Spectrometer System

Wavelength range

190-900nm

Light source

Hollow cathode lamp (HCL), Deuterium Arc lamp (D2)

Modulation

Square wave pulse

Modulation frequency

100hz self reversal (SR) background, 400hz Deuterium Arc (D2) background

Monochromator

Grating

1800 grooves/mm diffraction grating

Blazed wavelength

250nm

Focus

300nm

Bandwidth

0.1, 0.2, 0.4, 1.0, 2.0, 5.0nm

Scan mode

Automatic

Photometric type

Single beam

Wavelength accuracy

+0.15nm

Wavelength resolution

0.2nm+0.02nm

Wavelength reproducibility

<0.05nm

Baseline stability

0.005A/30min

Stray light

≤0.12%T(220nm NaI, 340nm NaNO2)

Background correction

Deuterium Arc (D2) 1.0Abs, Self Reversal (SR) 3.0Abs

Flame Analysis

Flame types

Air/Acetylene, Nitrous Oxide/Acetylene, Air/Propane (LPG)

Sensitivity (Cu)

2μg/ml Absorption >0.280Abs

Characteristic concentration

Cu<0.02μg/ml, Ba<0.15μg/ml (N2O/Acetylene)

Detection limit

Cu<0.004μg/ml

repeatability

Cu<0.7% (Air/Acetylene Flame)

Ba<1.0% (Nitrous Oxide/Acetylene Flame)

Burner heads

Titanium alloy

Nebulizer

High efficiency glass, Acid proof available as an option

Pre-mix chamber

Corrosion resistant

Atomizer selection

Automatic changeover (AA500FG),

Safety features

Burner identification, flame sensor, gas leak sensor, low gas pressure sensor, drain trap sensor, power loss protection

Data Processing

Operating program

AA Win Pro software

Analytical methods

Flame AA, Flame AE, Graphite Furnace, Hydride Generation

Readout Mode

Continuous, manual, peak height, peak area

calibrations

Multi-standard calibration, standard addition, interpolation

Data storage

Analytical results, instrument and measurement parameters, signal profile,calibration curve

Power Requirements

Main unit

220Vac 50/60hz 200W

Graphite power supply

220Vac 50/60hz instantaneous power 5KW current rating

Dimensions



Main unit

110x54x54cm 75kg

Graphite power supply

50x54x54cm 70kg









Optional Accessories & Consumables



Coded nitrous oxide burner

Coded low temperature burner

Auto sampler

Hydride system

Air compressor

Hollow cathode lamp

Glass nebulizer

O-ring

Pipette

Deuterium lamp

Photomultiplier tube





The AA500 Atomic Absorption Spectrometer is a high performance automated instrument designed to meet the requirements of the modern laboratory. Due to its versatility and performance it can be used for a wide range of applications. The versatile instrument is available in three configurations:

AA500F-The instrument is equipped with a flame atomizer only. The positioning of which is fully controlled by the embedded computer system and AA-Win Pro software. Three flame options are available to the user with the Air/Acetylene being the standard configuration. This flame can be used for nearly all standard elements while the N2O/Acetylene and the Air/LPG (natural gas) are available as an option for the more demanding of elements. All three flame configurations offer coded burner for full safety protection.


Features & Functions

  • AA-Win Pro software provides full control of the instrument and auto sampler with easy method change for each technique

  • Automatic 8 Hollow Cathode lamp turret controlled and optimized by the AA-Win Pro software. Operating lamp current and warm-up current can be individually controlled to eliminate drift commonly associated with lamp warming

  • D2 lamp background correction system fitted as standard to all configurations. High energy D2 lamp and adjustable beam splitter mirror are optimized by the AA-Win Pro software

  • Self reversal background correction system fitted as standard to all configurations. The high performance background system uses the same hollow cathode lamp as installed for the analysis. Minimum extra components are required and optical alignment is very simple. Self reversal can be used for any element at any wavelength making it extremely versatile.

  • High precision minimal optics ensures maximum light throughput to the computer controlled Czerny-Turner monochromator.

  • A universal auto sampler is available as an optional accessory which is conveniently mounted on the front of the AA500 instrument.

  • Absorption and Emission modes are standard features in the AA-Win Pro software as well as peak height, peak area, sequential and manual integration modes.
