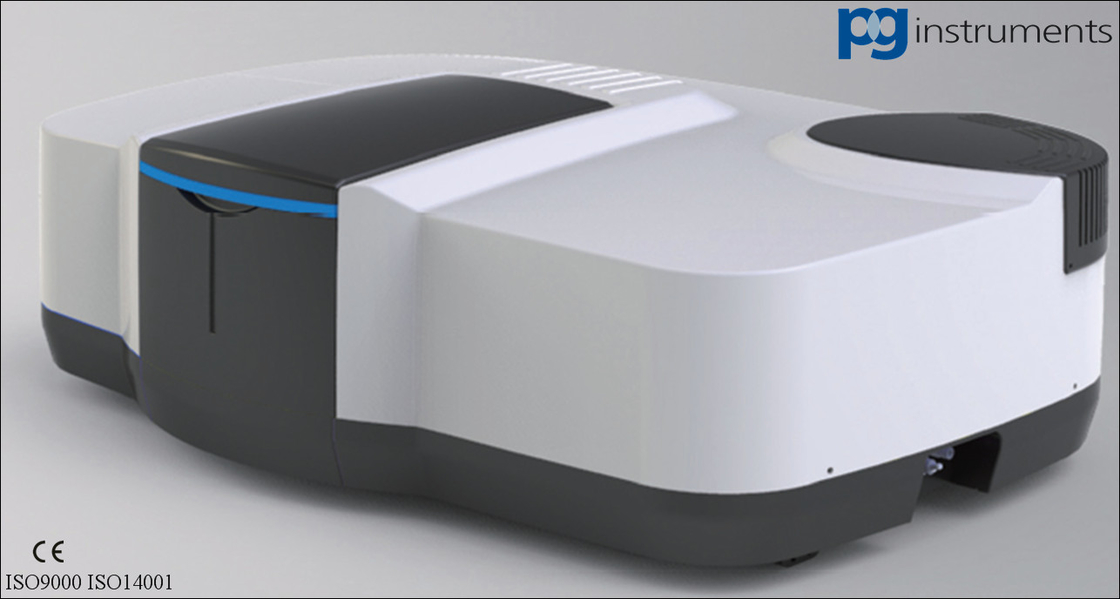

T110+ / T112+ Double Beam Spectrophotometer High performance High quality

T110+ / T112+ Double Beam Spectrophotometer High performance High quality


Large Image :  T110+ / T112+ Double Beam Spectrophotometer High performance High quality Get Best Price

Product Details:
Brand Name: PG instruments
Certification: CE
Model Number: T110+ / T112+ UV-Vis Spectrophotometer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Contact for a quote
Packaging Details: Carton package
Delivery Time: Contact for confirmation
Payment Terms: T/T,L/C
Supply Ability: 800 units per year
Detailed Product Description
High Light:

Flame Atomic Absorption Spectrometer


Split Beam Spectrophotometer

TheT110+/T112+ Series Spectrophotometer incorporates dual monochromator technology making it well suited to even the most demanding of applications in all areas of UV-Visible

Spectroscopy including:

• Pharmaceutical • Material Science
• Metrological Verification • Biotechnology
• Food Safety • Research


The optical design of both the T110+ and T112+ offer extremely low stray light characteristics (≤0.00004%T NaI,220 nm) which allows for an extensive photometric range (-8.0 – 8.0Abs). Measurements at deep ultra-violet wavelengths can also be achieved with use of Nitrogen purged optics. The instrument can be optically configured to suit the needs of the sample by means of a continually adjustable slit for precise control of spectral resolution and beam size adjustment by means of an attenuating wheel. Precise wavelength accuracy is ensured by the integrated Mercury Emissions Lamp used for automatic correction of spectral deviation.


A whole host of specialised accessories are available to suit the specific requirement of the sample, these include:
• Both 60mm and 150mm Integrating Sphere for Diffuse reflectance measurements.
• Absolute, and Specula reflectance measurements accessories.
• Polarizing Optics.
• Thermostatic Cell Holders for temperature control.
• Various long and short pathlength cell holders.
• Automated cell changers for both sample and reference beams.
• Tablet dissolution accessory for pharmaceutical quality control.




Specifications T110+ T112+
Optical System Dual Monochromator Double Beam Dual Monochromator Double Beam
Light Source D2 Lamp – UV Region D2 Lamp – UV Region
  W Lamp – Visible Region W Lamp – Visible Region
  Hg Lamp – Wavelength Correction Hg Lamp – Wavelength Correction
Wavelength Range 185~900nm 185~900nm
Wavelength Accuracy ±0.2nm ±0.2nm
Wavelength Reproducibility ≤0.1nm (D2 lamp) ≤0.1nm (D2 lamp)
Spectral Bandwidth 0.1 – 5nm Continually Adjustable 0.1 – 5nm Continually Adjustable
Stray Light ≤0.0001%T (NaI, 220 nm) ≤0.00004%T (NaI,220 nm)
  ≤0.0001%T (NaNO2,360 nm) ≤0.00002%T (NaNO2, 360 nm)
Photometric Range -6.0Abs~6.0Abs -8.0Abs~8.0Abs
Photometric Accuracy ±0.004A @2.0A ±0.004A @2.0A
  ±0.003A @1.0A ±0.003A @1.0A
  ±0.002A @0.5A ±0.002A @0.5A
  ±0.3% ±0.3%
Photometric Reproducibility ≤0.002A @2.0A ≤0.002A @2.0A
  ≤0.0008A @1.0A ≤0.0008A @1.0A
  ≤0.0004A @0.5A ≤0.0004A @0.5A
  ≤0.1% ≤0.1%
Baseline Flatness ±0.0008Abs ±0.0005Abs
Noise 0% Noise:≤0.01%; 0% Noise:≤0.01%;
  100% T Noise:≤0.1%; 100% T Noise:≤0.1%;
Communication port RS232C,USB, Wifi RS232C,USB,Wifi
