Bio-tech And Life Science UV-Vis Spectrophotometer T92+ , Spectral Band Width 0.1nm - 5.0nm

Bio-tech And Life Science UV-Vis Spectrophotometer T92+ , Spectral Band Width 0.1nm - 5.0nm

small.img.alt small.img.alt

Large Image :  Bio-tech And Life Science UV-Vis Spectrophotometer T92+ , Spectral Band Width 0.1nm - 5.0nm Get Best Price

Product Details:
Brand Name: PG instruments
Certification: CE
Model Number: T92+ UV-Vis Spectrophotometer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Contact for a Quote
Packaging Details: Carton package
Delivery Time: Contact for confirmation
Payment Terms: T/T, L/C
Supply Ability: 800 units per year
Detailed Product Description
High Light:

UV Visible Spectroscopy


Heavy Metal Analyzer

Bio-tech And Life Science UV-Vis Spectrophotometer T92+ , Spectral Band Width 0.1nm - 5.0nm


Pharmaceutical production and quality control
Bio-tech & life science
Environmental monitoring & control
Food & Beverage production and quality control
Agricultural monitoring
Clinical & forensic analysis
Geology & metallurgy
Gas & oil




Optical system

Double beam

Scan speed


Wavelength range


Wavelength accuracy


Wavelength reproducibility


Spectral bandwidth

Continuous slit 0.1- 5.0nm with 0.1nm interval

Photometric mode

Transmittance, Absorbance, Energy Concentration, all using UVWin software

Photometric range


Photometric accuracy

0.002A (0-0.5A), 0.004A (0.5-1A), 0.3%T (0-100%T)

Photometric reproducibility


Photometric noise

0.0004A(500nm) 30min warm-up

Baseline flatness


Baseline stability

0.0008A/h (500nm, 0Abs), 2hr warm-up

Stray light

≤0.01%T(220nm NaI, 340nm NaNO2)

Standard functionality

No stand alone function

Cell holder

Fixed position sample and reference


Photo multiplier tube

Light source

Tungsten Halogen and Deuterium arc lamps


No display


Not available

PC interface


Software support

UV Win

Power supply

Switch mode 120-230VAC 50-60Hz







Standard Accessories


UV-Win 5 software & RS232 cable

2x10mm quartz cells

Tungsten halogen lamp (spare)

Black block

Mains power lead

2A fuse

Dust cover

Operators manual

Calibration and system documentation

Standard fixed position 10mm path length motorized cell holder


Optional Accessories & Consumables


Sipper pump

Constant temperature cell changer

Peltier module

Solid sample holder

8 position motorized cell holder

5-100mm path length cell holder

Micro cell holder

Ultra micro cell holder

Specular reflectance accessory

Integrating sphere

Test tube holder

Deuterium lamp

Tungsten halogen lamp

Photomultiplier tube

Cells package

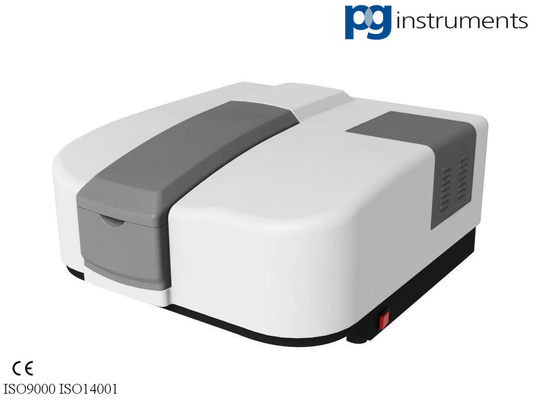

T92+ is a high performance double beam spectrophotometer with a variable spectral bandwidth from 0.1-5nm, selected by a continuous variable slit. The Czerny-Turner Monochromator with a holographic grating keeps stray light to a minimum and offers excellent optical resolution. The use of a photomultiplier tube as detector delivers exceptional sensitivity. The T92+’s true double-beam optical system coupled with an efficient and well proven electronic control system ensures high stability and low background noise.

Features & Functions

  • Photomultiplier tube detection provides exceptional sensitivity
  • Wavelength accuracy +0.3nm (Automatic Wavelength Correction)
  • User selectable spectral bandwidth between 0.1-5nm
  • User friendly design allows easy light source replacement and routine maintenance

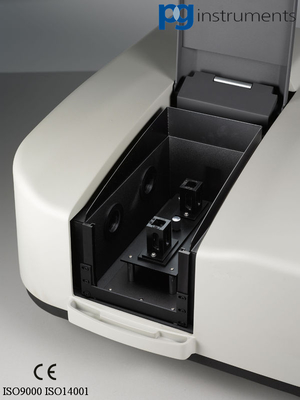

  • Sample compartment design enables use of a wide range of optional accessories
  • UV-Win software offers many operational and data processing capabilities and is supplied as standard with the T92+
