Double Beam UV-Vis Spectrophotometer T90+ Photometric Range - 4.0Abs - 4.0Abs
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | metal analysis spectrometer,Heavy Metal Analyzer |
||
|---|---|---|---|
Double Beam UV-Vis Spectrophotometer T90+ Photometric Range - 4.0Abs - 4.0Abs
T90+ is a high performance double beam scanning spectrophotometer with a variable spectral bandwidth. The Czerny-Turner Monochromator with a holographic grating keeps stray light to a minimum and offers excellent optical resolution. The use of a photomultiplier tube as detector delivers exceptional sensitivity. The true double-beam optical system coupled with an efficient and well proven electronic control system ensures high stability and low background noise.
Features & Functions
- Czerny-Turner Monochromator with high resolution holographic grating
- High performance variable (0.1, 0.2, 0.5, 1.0, 2.0, 5.0nm) spectral bandwidth
- Wavelength accuracy +0.3nm
- Stepped Monchromator Drive
- Excellent performance
- Excellent baseline stability
- High resolution
- UV-Win software is supplied as standard for spectral, kinetic, photometric and quantitative analysis
Applications:
Pharmaceutical production and quality control
Bio-tech & life science
Environmental monitoring & control
Food & Beverage production and quality control
Agricultural monitoring
Clinical & forensic analysis
Geology & metallurgy
Gas & oil
Specifications:
|
Optical system |
Double beam |
|
Scan speed |
Selectable |
|
Wavelength range |
190-900nm |
|
Wavelength accuracy |
+0.3nm |
|
Wavelength reproducibility |
≤0.1nm |
|
Spectral bandwidth |
0.1, 0.2, 0.5, 1.0, 2.0, 5.0nm |
|
Photometric mode |
Transmittance, Absorbance, Energy Concentration, all using UVWin software |
|
Photometric range |
-4.0-4.0Abs |
|
Photometric accuracy |
0.002A (0-0.5A), 0.004A (0.5-1A), 0.3%T (0-100%T) |
|
Photometric reproducibility |
0.001A(0-0.5A) |
|
Photometric noise |
0.0004A(500nm) 30min warm-up |
|
Baseline flatness |
0.001A(200-850nm) |
|
Baseline stability |
0.0008A/h (500nm, 0Abs), 2hr warm-up |
|
Stray light |
≤0.01%T(220nm NaI, 340nm NaNO2) |
|
Standard functionality |
No stand alone function |
|
Cell holder |
Fixed position sample and reference |
|
Detector |
Photo multiplier tube |
|

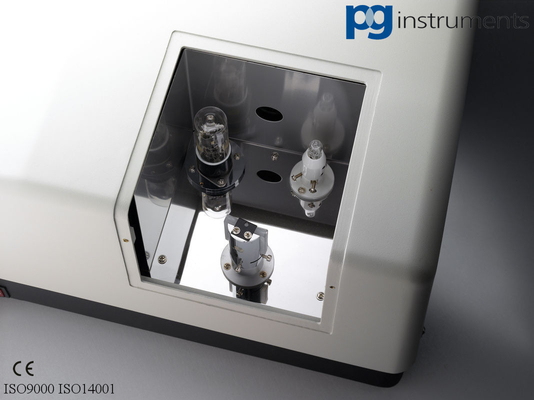

Light source |
Tungsten Halogen and Deuterium arc lamps |
|
Display |
No display |
|
Printer |
Not available |
|
PC interface |
RS232 |
|
Software support |
UV Win |
|
Power supply |
Switch mode 120-230VAC 50-60Hz |
|
Weight |
43kg |
|
Dimension |
545x580x270mm |
Standard Accessories
UV-Win 5 software & RS232 cable
2x10mm quartz cells
Tungsten halogen lamp (spare)
Black block
Mains power lead
2A fuse
Dust cover
Operators manual
Calibration and system documentation
Standard fixed position 10mm path length motorized cell holder
Optional Accessories & Consumables
Sipper pump
Constant temperature cell changer
Peltier module
Solid sample holder
8 position motorized cell holder
5-100mm path length cell holder
Micro cell holder
Ultra micro cell holder
Specular reflectance accessory
Integrating sphere
Test tube holder
Deuterium lamp
Tungsten halogen lamp
Photomultiplier tube
Cells package
