Home ProductsUV Vis Spectrophotometer

T70+ UV-VisSplit Beam Spectrophotometer, Standalone or Software Control, for Education

T70+ UV-VisSplit Beam Spectrophotometer, Standalone or Software Control, for Education

small.img.alt small.img.alt

Large Image :  T70+ UV-VisSplit Beam Spectrophotometer, Standalone or Software Control, for Education Get Best Price

Product Details:
Brand Name: PG instruments
Certification: CE
Model Number: T70+ UV Spectrophotometer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Contact for a Quote
Packaging Details: Carton package, 550x500x350mm, 16kg
Delivery Time: Contact for confirmation
Payment Terms: T/T, L/C
Supply Ability: 1500 units per year
Detailed Product Description
High Light:

metal analysis spectrometer


UV Visible Spectroscopy


Split Beam UV-Vis Spectrophotometer T70+, Standalone or Software Control, for Education




Optical system

Split beam ratio

Scan speed


Wavelength range


Wavelength accuracy


Wavelength reproducibility


Spectral bandwidth

0.5, 1.0, 2.0, 5.0nm

Photometric mode

Transmittance, Absorbance, Energy Concentration

Photometric range


Photometric accuracy

0.002A (0-0.5A), 0.004A (0.5-1A), 0.3%T (0-100%T)

Photometric reproducibility

00.001A(0-0.5A), 0.002A(0.5-1A), 0.15%T(0-100%T)

Photometric noise

0.001A(500nm) 30min warm-up

Baseline flatness


Baseline stability

0.001A/h (500nm, 0Abs), 2hr warm-up

Stray light

≤0.12%T(220nm NaI, 340nm NaNO2)

Standard functionality

Photometric, Quantitative, Spectrum and DNA measurements

Cell holder

Automatic 8 cell changer


Silicon photo diode

Light source

Tungsten Halogen and Deuterium arc lamps


Digital LCD display


Not available

PC interface


Software support

Local and UV Win

Power supply

Switch mode 120-230VAC 50-60Hz







Standard Accessories


2x10mm quartz cells

Tungsten halogen lamp (spare)

Black block

Mains power lead

2A fuse

Dust cover

Operators manual

Calibration and system documentation

8 position 10mm path length motorized cell holder



Optional Accessories & Consumables


Sipper pump

Constant temperature cell changer

Peltier module

Solid sample holder

5 position motorized cell holder

8 position motorized cell holder

Micro cell holder

Specular reflection accessory

Test tube holder

Dissolution accessory

Deuterium lamp

Tungsten halogen lamp

Cells package



T70+ is a high performance split beam spectrophotometer available with a variable spectral bandwidth, which is innovative in terms of instrument application, mechanical and optical design, electronic control and software whilst retaining features that are well established and accepted through the industry.

T70+ is able to carry out photometric measurement, spectrum scans, quantitative determination and DNA/Protein analysis. When interfaced to a PC using the UV-Win software, many more features are available including three dimensional spectrum, kinetic measurements, method and data storage, exportation of data in multiple formats and GLP administration features.

Features & Functions

High performance variable spectral bandwidth
Wavelength accuracy +0.3nm

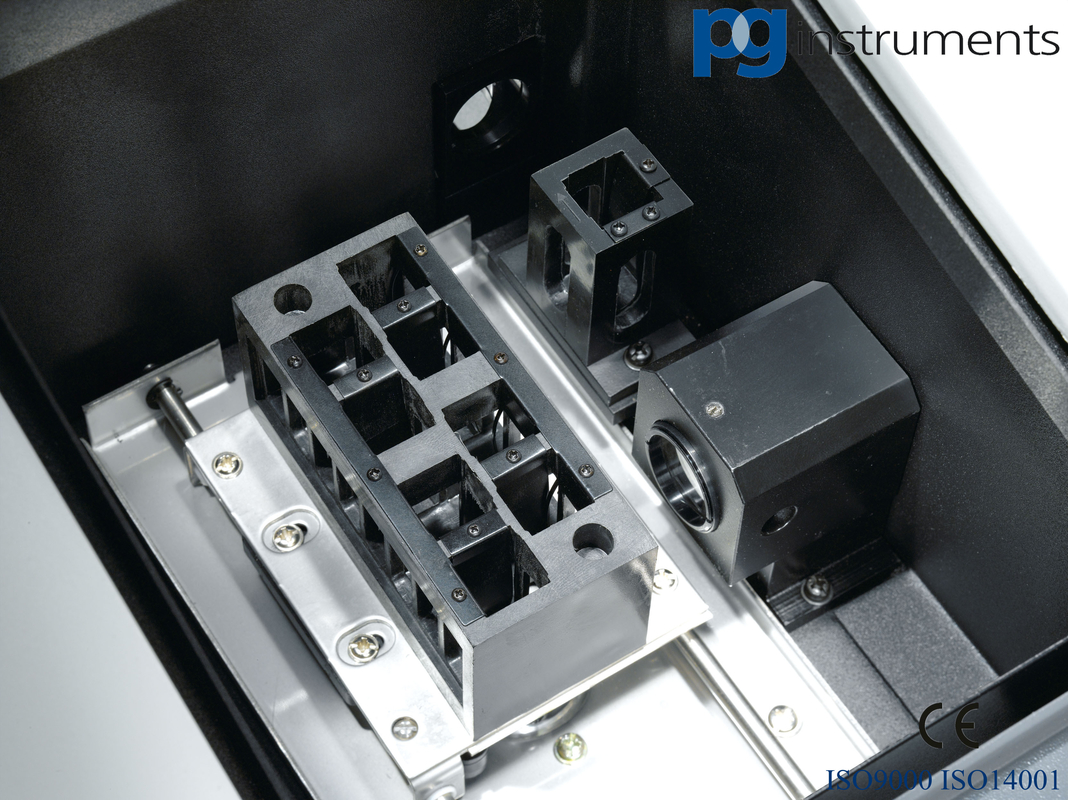

Supplied with a motorized 8 cell changer and pre-aligned Tungsten and Deuterium lamps
Holographic blazed grating 1200lines/mm
High degree of automation requiring minimal key depressions to start analysis
A number of optional accessories available which increase the flexibility of the analysis
Analysis for photometric measurement, spectrum scans, quantitative determination and DNA/Protein analysis
UV-Win software gives additional functionality including 3D spectrum analysis and compliance with GLP protocol.
Simple mechanical structure and modular electronics make routine maintenance very easy


Education in universities and colleges
Environmental monitoring & control
Food & Beverage production and quality control
Agricultural monitoring
Geology & metallurgy
Gas & oil
