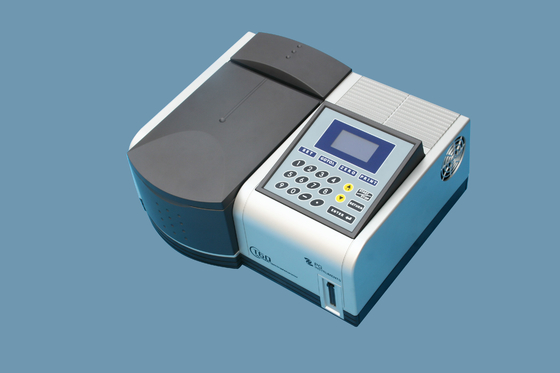

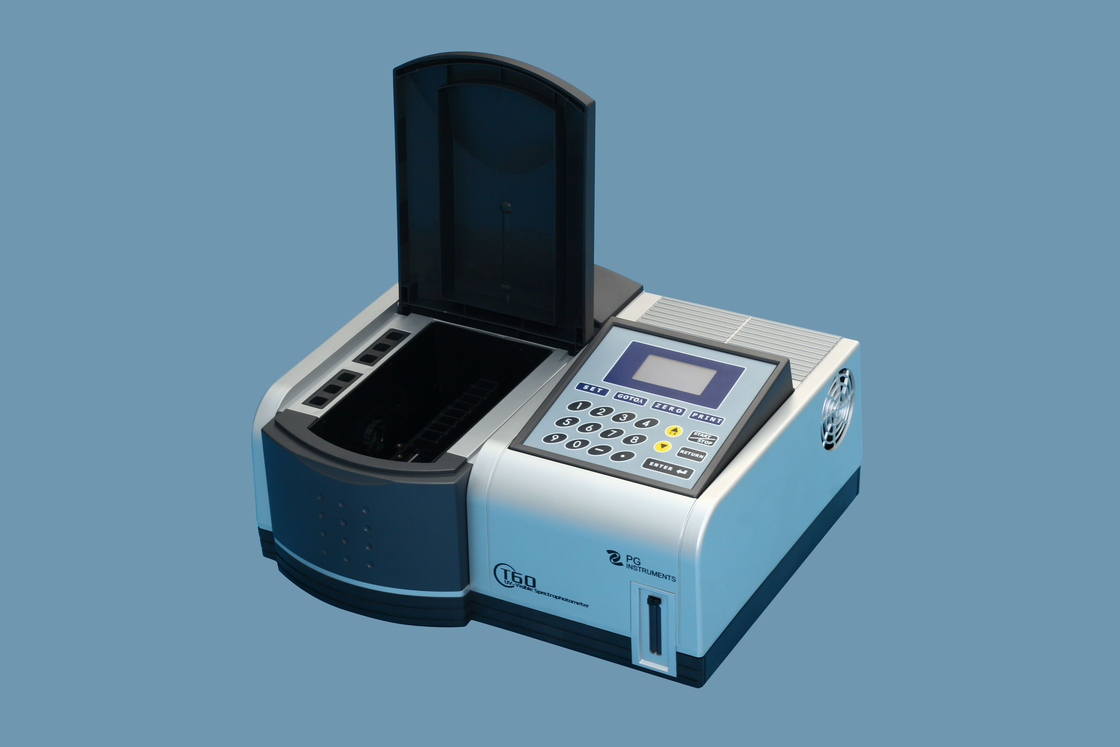

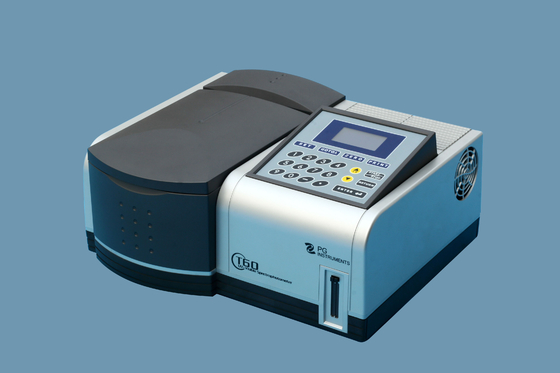

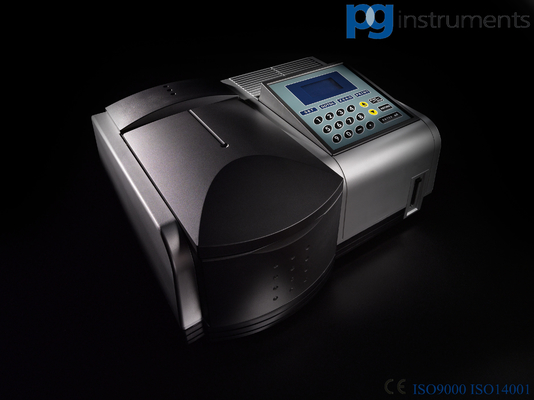

T60V 2nm Bandwidth Split Beam Spectrophotometer with Wavelength Reproducibility ≤0.4nm

2nm Bandwidth Split Beam Spectrophotometer T60V with Wavelength Reproducibilit ≤0.4nm

T60V (Visible) is a split beam system operating within a wavelength range of 190-1100nm. The instrument has a switched model power supply accepting voltages in the range of 95-240V AC and supplied with either universal path length 5 cell changer or fixed path length 8 cell changer as standard. T60V delivers the functionality and accuracy of an advanced instrument at an affordable price.

High quality optical components ensure reliable analytical data with low stray light achieved using very low noise electronic circuits.

Deuterium and tungsten light source deliver superior stability across the full wavelength range. Both types of lamp have self timers and are inexpensive and easy to replace when required.

The monochromator is completely sealed and the optical surfaces can be easily cleaned to maintain optimum reflectivity over the lifetime of the instrument.

A maintenance free high resolution direct stepper drive positions the grating precisely, which ensures reproducible wavelength scanning at different scan speed, thus negating any wavelength peak shift.

The Spectrophotometer shell is made from an environmentally friendly non corrosive material and a simple retaining mechanism on the base allows easy access for air filter changes and routine maintenance.


Features & Functions

High performance fixed 2nm spectral bandwidth
Holographic blazed grating 1200lines/mm
Local control software for photometric fixed wavelength measurement
Easily upgraded to include quantitative analysis, multi wavelength spectrum & kinetics

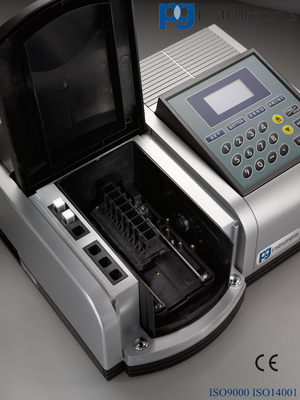

Built in cell holder storage
Robust modular design with a small footprint
Can be used with UV Win Software (optional). CFR21 Part 11 Software Options are available


Applications:

Education in universities and colleges
Environmental monitoring & control
Food & Beverage production and quality control
Agricultural monitoring
Geology & Metallurgy
Gas & oil
