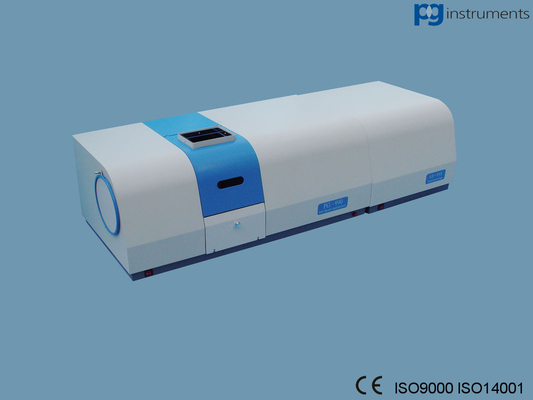

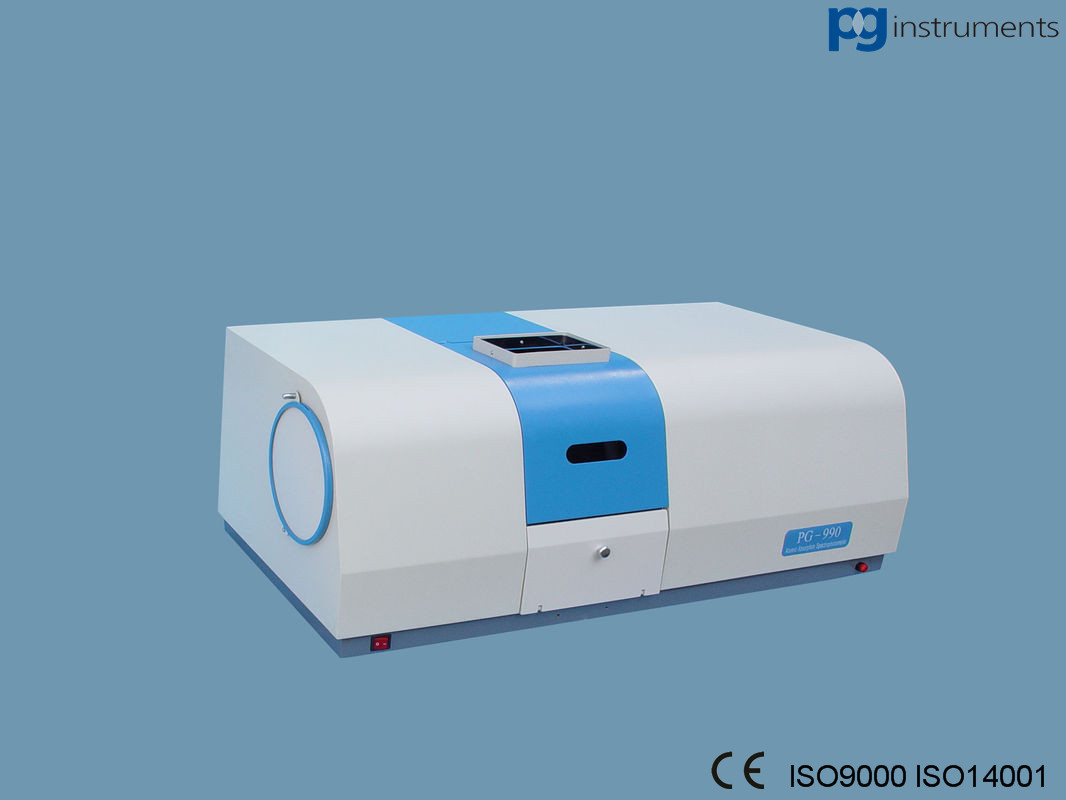

PG990FG Atomic Absorption Spectrophotometer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | UV Visible Spectroscopy,Heavy Metal Analyzer |
||
|---|---|---|---|
Combined Flame and Graphite Furnace System PG990FG Atomic Absorption Spectrophotometer
Features & Functions
- The flame and graphite furnace is integrated into one instrument.The change over from one technique to another is carried out by simple keystrokes within the software.
- The instrument has a motorized 8 hollow cathode lamp turret which allows the automatic positioning and optimization of each hollow cathode lamp by the software.
- The control of the gas flows for the fuel gas (C2H2) of the burner is also carried out directly from the software thus allowing optimization of the instrument for the analytical parameters for a selected analysis
- Two methods of background correction are available. The first utilizes a Deuterium Arc lamp and the second is the proven method of Self Reversal.
- High precision minimal optics ensures maximum light throughput to the computer controlled Czerny-Turner Monochromator.
Safety
- Pressure monitoring for all gases
- Flame sensor
- Drain trap level sensor
- Gas leak detector
- Over pressurein premix
- Safety cut off switch
- Argon gas pressure sensor
- Water flow sensor
- Over temperature sensor
- Broken graphite tube protection
Applications:
Agricultural
Clinical
Environmental
Food
Metal
Mining
Geological
Pertrochemical
Pharmaceutical
Specifications:
|
Optic System |
|
|
Wavelength range |
190-900nm |
|
Monochromator |
Czerny-turner configuration |
|
Bandwidth |
0.1, 0.2, 0.4, 1.0, 2.0, 5.0nm |
|
Wavelength accuracy |
+0.25nm |
|
Wavelength repeatability |
0.15nm |
|
Baseline stability |
0.005A/30min |
|
Flame Analysis |
|
|
Sensitivity (Cu) |
0.03μg/ml/1% |
|
Burner heads |
Titanium alloy burner |
|
Nebulizer |
High efficiency glass |
|
Atomization chamber |
Corrosion-resistant material |
|
Position adjustment |
Automatic changeover of flame and furnace Automatic setting of optimum height for flame burner |
|
Safety |
Automatic ignition and of mixing air-acetylene gas with safety control |
|
Graphite Furnace Analysis |
|
|
Character value(Cd) |
0.5Pg |
|
Temperature range |
Ambient-2650℃ |
|
Heating |
Voltage feedback control when drying and ashing Optical temperature control when atomizing |
|
Heating program |
Up to 9 steps with choices of ramp,temperature increase and full-power heating |
|
Background correction |
|
|
Deuterium lamp background correction |
1.0Abs Self-reversal background correction:1.0Abs |
|
Data Processing |
|
|
Analytical methods |
Flame , graphite furnace, hydride |
|
Determination method |
Calibration curves using 1st,2ndand 3rd order of fit, standard addition method |
|
Repetitions |
1-20with caculations of average,SD and RSD |
|
Result printout |
Output of parameters ,data,spectra and calibration curves |
|
Mainframe |
|
|
Light source |
8 hollow cathode lamp turrets with 2 lamps simultaneously lit(one lamp pre-heated) |
|
Power supply |
110V/60Hz or 220V/50Hz three-pahase AC 200W(mainframe) 5000W (graphite furnace) |
|
Dimensions |
Mainframe 110cm,50cm,45cm Graphite furnace 50cm,50cm,45cm |
