Water Analysis Portable Spectrometer C30M , Spectral Bandwidth 4.0nm

Water Analysis Portable Spectrometer C30M , Spectral Bandwidth 4.0nm

large.img.alt
small.img.alt small.img.alt

Large Image :  Water Analysis Portable Spectrometer C30M , Spectral Bandwidth 4.0nm Get Best Price

Product Details:
Brand Name: PG instruments
Certification: CE
Model Number: C30M Spectrophotometer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Contact for a Quote
Packaging Details: Aluminum Carrier Case
Delivery Time: Contact for confirmation
Payment Terms: T/T, L/C
Supply Ability: 200 units per month
Detailed Product Description
High Light:

Flame Atomic Absorption Spectrometer

,

double beam spectrophotometers





Water Analysis Portable Spectrometer C30M , Spectral Bandwidth 4.0nm





Light source

Convergent tungsten lamp, 500hr of service life

Measurement modes

Spectrum scan, quantitative measurement, kinetics measurement, photometric

measurement

Monochromator

Flat-field holographic concave grating

Detector

CCD 1L x 511 2048 pixel

Sampling accessories

Insert optic fiber probe, 10mm and 20mm pathlength tips; rectangular

cuvette holder;

 cylindrical test tube holder

Power supply

Built-in battery, continuously work for 6 hours after being charged

Vehicle power supply adapter (optional)

Battery charger (90-240V)

Printer

Micro printer (optional), support USB printer (PLC language)

Operating system

Windows embedded CE 6.0 with 2GB memory and timing function

Input/display

480 x 272 colour touch operation or mouse operation

Specifications

Wavelength range

380-800nm

Spectral bandwidth

4.0nm+0.8nm

Wavelength error of indication

+1.0nm

Wavelength reproducibility

≤0.1nm

Baseline flatness

+0.005Abs

Noise

≤0.5%

Drift

≤1.0%/30min

Stray light

≤0.5%

Transmittance indication error

+1.0%

Photometric reproducibility

≤0.3%

Dimension

276.5x169.5x119.5mm

Temperature requirements

Working temperature: 5℃-30℃

Storage temperature: -20℃-55℃





Standard Accessories



Carry case

Pipettes

Washing bottle

Plain test tube

Centrifuge tubes

Cuvette

Test tubes

Data viewer software

Plastic boxes

Long path length cell holder

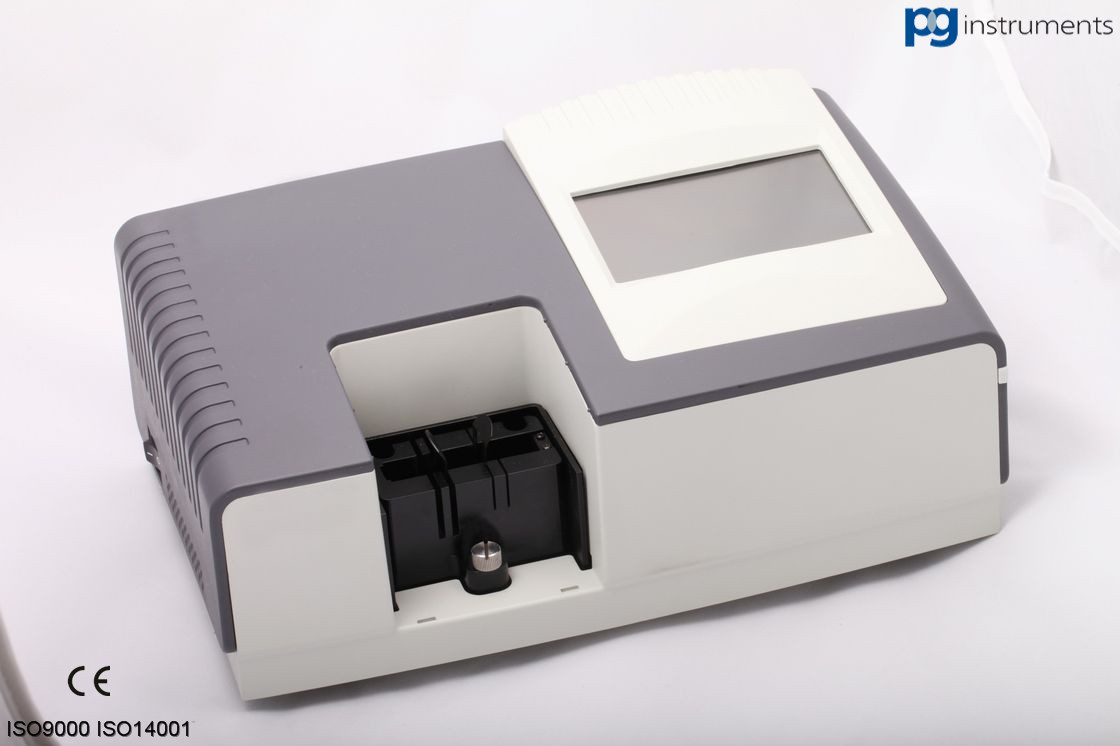

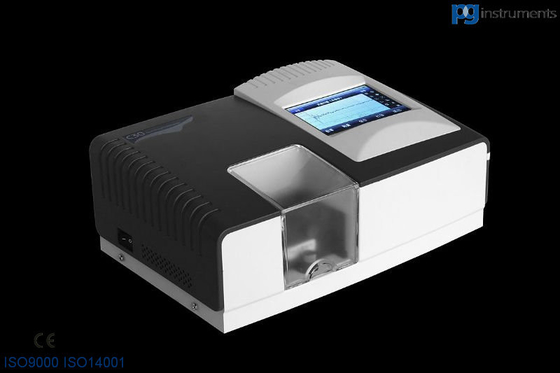

The C30M portable spectrometer is a compact portable instrument based on advanced CCD detection technology. Whilst being highly compact, the instrument boasts all the features of a conventional bench-top spectrophotometer including Spectrum Scanning, Photometric, Quantitative and Kinetic methods.

A Windows CE embedded operating system and touch screen TFT interface allow for ease of use and extensive data storage. Field measurement data can be transferred from internal instrument storage to a PC via USB connection and the data viewer software which offers an extensive tool set for data interpretation and reporting.

C30M differentiates itself from C30 by means of pre-programmed test methods for the Spectroquant series of reagent test kits from Merck Chemicals. PG Instruments have selected the Spectroquant Test Kits from Merck Chemicals as a partner in order to offer an application specific instrument, targeted specifically for environmental measurements. The C30M Spectrophotometer is supplied pre-programmed with calibration data for each of the Spectroquant test methods.




Features & Functions

  • Packed in a rugged carry case
  • A Windows CE embedded operating system
  • 4.3 inch 480*272 colour touch screen TFT interface
  • 2GB memory for extensive data storage
  • Pre-programmed test methods for water and food analysis (optional)
  • Use rectangular cell, round test tubes and fiber probe
  • Outstanding flat-field holographic concave grating
  • Multiple interface including USB, RS232, Ethernet, GPS and SIM card
  • GPS positioning and GPRS mobile wireless data transmission
  • Data monitoring software (optional)
  • Lithium battery continuously work for 6 hours after fully charged
  • A wide range of sample preparation accessories




Applications:

Environmental
Food & Beverage
Agricultural
Clinical
