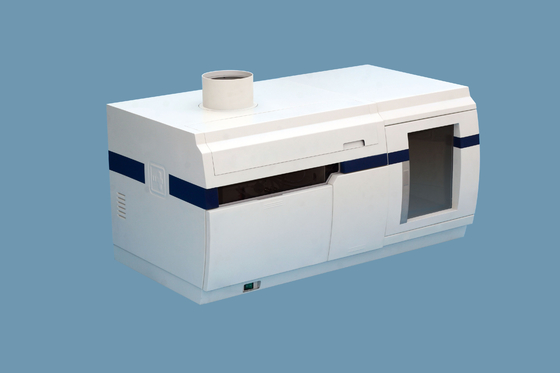

AF402 Atomic Fluorescence Spectrometer 3 Channel Pump With 3 Adjustable Pressure Control Clamps

AF402 Atomic Fluorescence Spectrometer 3 Channel Pump With 3 Adjustable Pressure Control Clamps

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  AF402 Atomic Fluorescence Spectrometer 3 Channel Pump With 3 Adjustable Pressure Control Clamps Get Best Price

Product Details:
Brand Name: PG instruments
Certification: CE
Model Number: AF402 Atomic Fluorescence Spectrometer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Contact for a Quote
Packaging Details: Carton package, 1280x800x800mm, 100kg
Delivery Time: Contact for confirmation
Payment Terms: T/T,L/C
Supply Ability: 500 units per year
Detailed Product Description
High Light:

metal analysis spectrometer


Heavy Metal Analyzer



Atomic Fluorescence Spectrometer 3 channel pump with 3 adjustable pressure control clamps




Food and Beverage

Public Health










Sample Automisation


Quartz tube furnace with auto ignition of argon/hydrogen flame

Furnace heating

Computer controlled heating

Hydride generator

Continuous flow high performance for cold-vapour mercury and hydride

 determinations of As, Se, Te, Bi, Sb, Sn, Zn, Pb, Cd, Ge

Gas requirement

High purity argon gas (99.99%) 30psi pressure

Sample and Delivery

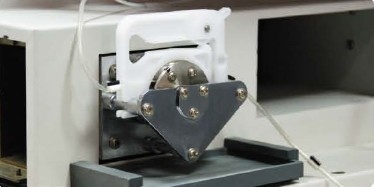

Peristaltic pump

3 channel pump with 3 adjustable pressure control clamps and programmable

 speed control

Exhaust system

Built in with filter to decontaminate pollutants

Gas/liquid separator

High efficiency two-stage gas-liquid separator



XYZ built in design

Sample introduction

High sample capacity, automated introduction of sample and standards

by motorized syringe drive

Sample capacity

2 x45 standard test tube sample racks


Optical design

Short focal length, non-dispersive integrated optical design

Light source

3 channel simultaneous element analysis using computer controlled.

 Modulated and pulsed, hollow cathode light source

Baseline stability


Linear range


Computer System

Operating software

PF Win software


Alarm for low gas <50ml/min. Gas cut off in the event of power supply loss

Power requirements

220Vac+10% 50/60hz 300W





The Atomic Fluorescence Spectroscopy (AFS) technique is widely used for determination of hydride forming elements and Mercury analysis. The technique provides an alternative to the conventional method of connecting a hydride generator to an Atomic Absorption Spectrophotometer (AAS). Due to the high intensity Hollow Cathode lamp source and low baseline noise offered by this technique, the usable sensitivity is greatly improved offering very low detection limits (ppt).

The AFS instrument fulfils the analysis by means of simultaneous detection, accurate sample introduction and stable furnace temperature control complementing the more widely used AAS flame/graphite systems.


Standard Features


Light Source

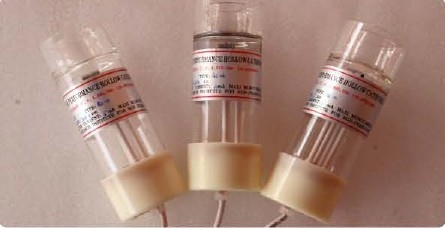

  • High intensity Hollow Cathode lamps for greater intensity and stability

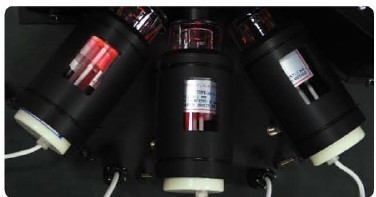

  • Up to three lamps can be installed for simultaneous analysis
  • All lamps are uniquely data coded offering important information to the PF Win operating software

Optical System

  • Shielded optical design greatly reduces light interference
  • Enhanced signal to noise ratio for increased analytical sensitivity
  • Unique optical configuration for increased fluorescence intensity. Up to twice the fluorescence intensity found in traditional AFS systems.
  • High Quantum Solar Blind Photomultiplier Tube fitted as standard to ensure optimum stability
  • Atomiser System
  • High precision quartz atomizer tube designed for optimum performance, durability and long life
  • Self-igniting Argon/Hydrogen flame with software controlled heater coil
  • Adjustable height control for improved optimization
  • Integrated fume exhaust system to decontaminate pollution
  • Hydride Generator
  • Built in hydride generator with continuous flow
  • Multi-pump with individual pressure adjustment for uptake control of reagents and carrier liquids

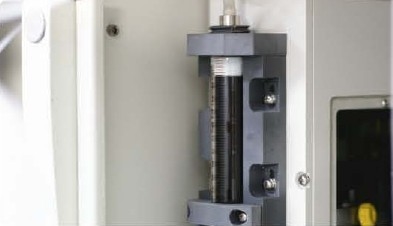

  • Introduction of sample using motorized syringe drive and unique three way control valve. Software controlled for greater accuracy
  • High efficiency glass liquid separator which optimizes the separation minimizing pressure fluctuations and improving measurement precision
  • Reagent compartment stores reagents safely and cleanly. Storage for up to four containers
  • Low level reagent monitoring



  • Integrated autosampler
  • XYZ configuration
  • 2 x 45 vial trays for automated sample introduction
  • Auto dilution using motorized syringe drive and selection valve
  • Full calibration using only one stock standard solution
  • Fully controlled by the PF Win software


Electronic Control System

  • High technology electronics and PCB components
  • Rear mounted and separated electronic section to eliminate carry over from hydride technique
  • PF Win instrument control software


Detection Limit


Detection Limit (ug/L)

RSD (%)

As, Se, Pb, Bi, Te, Sn, Sb

< 0.01

< 1.0

Hg, Cd

< 0.001

< 1.0


< 1.0

< 1.0


< 0.05

< 1.0
