High Light: | quadrupole mass spectrometry,single quadrupole mass spectrometry |
---|
Specifications
item GC&MS Interface Filament Ionization Energy Ion Source Temperature Mass Analyzer Backing Pump Turbo Pump Detector Mass Range Mass Accuracy Resolution(R)
Signal to Noise Ratio (EI) Maximum Scanning Speed |
Specification Capillary direct interface, independent temperature control, 50-300 oC Dual for EI, maximum emitting current 300uA 10-100eV adjustable Independent temperature control, maximum 350oC, adjustable High precision metal Molybdenum Quadrupole with pre-quadrupole Mechanical pump, geometric pumping speed 165L/min Turbo molecular pump, pumping speed 71L/s, 260L/s optional Electron multiplier 1.5-1050 u ±0.1u Unit mass resolution 1pg OFN full scanning, ≥150:1 RMS at m/z 272 100fg OFN selective ion scanning, ≥150:1 RMS at m/z 272 ±0.1u/48h 11000u/s |
M7 Single Quadrupole GCMS is the new generation high performance Mass Spectrometer designed by Persee, who solely holds intellectual property rights. The M7 is anaccurate, reliable and precise system which is suitable to mass routine analysis and precise research application as well.
The M7 MS could be widely used in food safety, environmental protection, material chemical industry, life science, medicine research, criminal investigation and many other fields, benefiting from its high performance, long service life and good after-sales service.
Features
The high performance GC and various optional accessories satisfy different analysis requirement.
User-friendly design makes the maintenance much easier.
The new EI source with multi patents provides high ionization efficiency.
The new generation molecular pump made by PFEIFFEER satisfies the high vacuum requirement.
The powerful GCMS workstation is intuitive, simple and easy to operate. The unique remote control function enables powerful technical support.

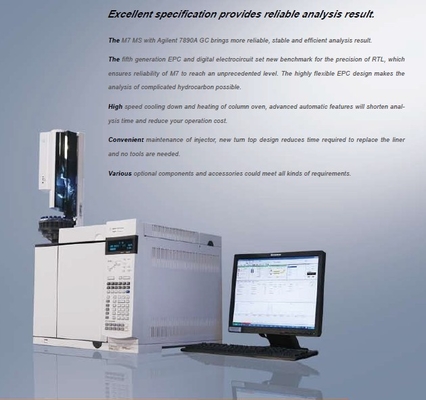

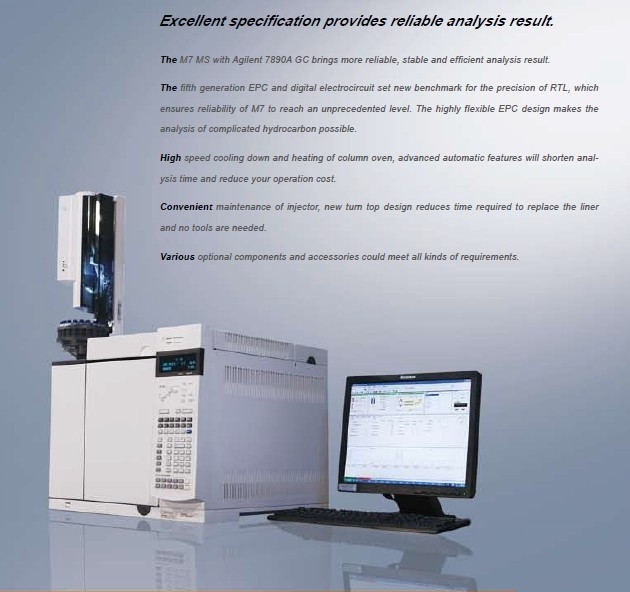

Excellent specification provides reliable analysis result.
Excellent specification provides reliable analysis result.
The M7 MS with Agilent 7890A GC brings more reliable, stable and efficient analysis result.
The fifth generation EPC and digital electrocircuit set new benchmark for the precision of RTL, which ensures reliability of M7 to reach an unprecedented level. The highly flexible EPC design makes the analysis of complicated hydrocarbon possible.
High speed cooling down and heating of column oven, advanced automatic features will shorten analysis time and reduce your operation cost.
Convenient maintenance of injector, new turn top design reduces time required to replace the liner and no tools are needed.
Various optional components and accessories could meet all kinds of requirements
User-Friendly Design
User-friendly Observation Window and Indicative Lamp design, inside modular assembly design, side door design of the vacuum chamber and multiple interface modes.
Front Panel
Filament is common consumable for a MS system. Do you want to visually observe status of it? Is it lit? Has it been damaged and replacement required? When you install a column, do you want to clearly see accessible location in the column after it passes through the transmission line? The transparent observation window on the front panel could help you achieve all of this, while the indicating lamp will show you real running state of the MASS system.
·Electrical Box
Do you feel puzzled about the chaotically distributed PCBs? Do you feel head-scratching for the scatted cables? M7 supplies an integral electrical box which is same as a PC does, leaving only cable connectors visible, keeping internal of your instrument tidy and clean. The distinct connection ID makes it simple to assemble.
Quadrupole
New generation metal molybdenum quadrupole ensures excellent performance.
Vacuum Chamber
Cleaning is an essential maintenance process for an Ion source, prequadrupole system. M7 supplies a side door design of the vacuum chamber, which makes cleaning much easier, routine maintenance much more simple.
·Rear Panel
Integrated wireless communication module, multiple interfaces, Ethernet port, serial port and USB port
Ion Source
EIelectron impact source, with dual heating robs independent heating which makes heating more uniform. Max temperature is 350℃ .
Dual filament design provides double filament life.
Electron energy 10-100eV adjustable, enabling low-voltage operation to meet different application requirements.
Tube-shaped lens enhance focusing effect and dramatically improve ionization efficiency.
Patented surface repulsion electrode design dramatically improves ion focusing effect.
Vacuum System
High performance pre-vacuum pump and turbo molecular pump, to reduce ion collisions and background noise and memory effect.
Backing pump using GLD-136 small direct oil rotary plate pump, geometrical pumping speed 165L/min
Turbo pump using Germany PFEIFFEER innovative HiPace TM turbo-molecular pump, with a more reliable design, compact structure, higher pumping speed and more efficient cooling system.
To suit your specific needs and budget, 2 specifications are available.
HipaceTM 80, maglev small turbo-molecular pump, with geometrical pumping speed of 71L/S (standard configuration).
HipaceTM 300, maglev small turbo-molecular pump, with geometrical pumping speed of 260L/S (optional).
Quadrupole Mass Analyzer
High precision metal molybdenum quadrupole mass analyzer, to achieve standard unit mass resolution.
Removable pre-quadrupole filter device, to reduce pollution of main quadrupole and avoid cleaning maintenance.
Backing pump equipped with scanning voltage with mass changes, to ameliorate fringing field, improve efficiency of ion incidence and achieve better detection sensitivity.
Detector
Electron multiplier with high-voltage conversion dynode.
Small-signal amplifier with composite I/V conversion circuit technology to effectively reduce circuit noise, improve signal to noise ratio and ensure outstanding linear dynamic range.
Electronic System
High-quality RF power supply, to calibrate mass axis of the full mass range just using two points, to maintain good linearity in the full scan mode.
Excellent electromagnetic compatibility design and high-precision, low-temperature drift electronic devices, to ensure outstanding mass precision and mass stability of the instrument.
32-bit embedded control system, using Ethernet communication interface, allowing remote control and network sharing.
Highly modular PSU and control circuit system, to enhance the overall reliability of the instrument and make maintenance and upgrade easier.
Software
It is a fully recrimination software, which is intuitive and intelligent and easy to operate. It is a good helper for you to easily make instrument control, data processing and spectra library search.
Don’t worry when you are not familiar with the new instrument. As long as your instrument has an access to network, with the remote synchronization control function, we can help you operate the instrument and analyze data.
Wide Application Area
Manufacturing
Used for process control and finished product inspection, eg food additives, fragrance ingredient analysis in cosmetics
Petrochemical
Used for process control, quality control and finished product inspection in oil exploration, oil processing industry
Environmental Monitoring
Used for monitoring of soil, water quality, air, indoor environment, Agriculture and Animal Husbandry
Used for pesticide residue, veterinary drug residue testing, eg clenbuterol detectioneg VOC, PAH, PCB, OCP etc.
Quality Inspection
Used for quality inspection in quality monitoring, import and export inspection and quarantine, quality supervision sector
Education and Research Institute
Used for experiments, research, teaching and presentations in colleges, vocational institutes of technology
Pharmacy
Used for quality control of drugs, drug raw material in pharmaceutical industry, and determination of solvent residues.
Other Areas
Used for water quality monitoring in water plant, drug testing in public security system
Melamine Testing
Column: DB-5MS
Ion Source: EI (70eV)
Analysis Condition
Injection Volume: 1μL
Carrier Gas Flow Speed: 1mL/min
Inlet Temperature: 240°C
Oven: 100°C to 250°C temperature-programmed
Transfer Line Temperature: 240°C
Ion Source Temperature: 240°C
Scanning Mode: selective ion scanning,
qualitative ion m/z99, m/z171, m/z327, m/z342
quantitative ion m/z 327
Dimethyl Fumarate in Fruits Testing
Column: DB-5MS
Ion Source: EI (70 eV)
Analysis Condition:
Injection Volume: 1μL
Carrier Gas Flow Speed: 1mL/min
Injector Temperature: 240°C
Oven: 100 °C to 200 °C temperature-programmed
Transfer Line Temperature: 230°C
Ion Source Temperature: 230°C
Scanning Mode: selective ion scanning,
qualitative ion 113
quantitative ion 59, 85
Simultaneous Detection of 16 kinds of Plasticizers
Column: DB-5MS
Ion Source: EI (70 eV)
Analysis Condition:
Injection Volume: 1μL
Carrier Gas Flow Speed: 1mL/min
Injector Temperature: 260°C
Oven: 60 °C to 280 °C temperature-programmed
Transfer Line
Simultaneous Detection of 16 kinds of Plasticizers
|
Column: DB-5MS
Ion Source: EI (70 eV)
Analysis Condition:
Injection Volume: 1μL
Carrier Gas Flow Speed: 1mL/min
Injector Temperature: 260°C
Oven: 60 °C to 280 °C temperature-programmed
Transfer Line Temperature: 250°C
Ion Source Temperature: 250°C
Scanning Mode: segmentation scanning
|
