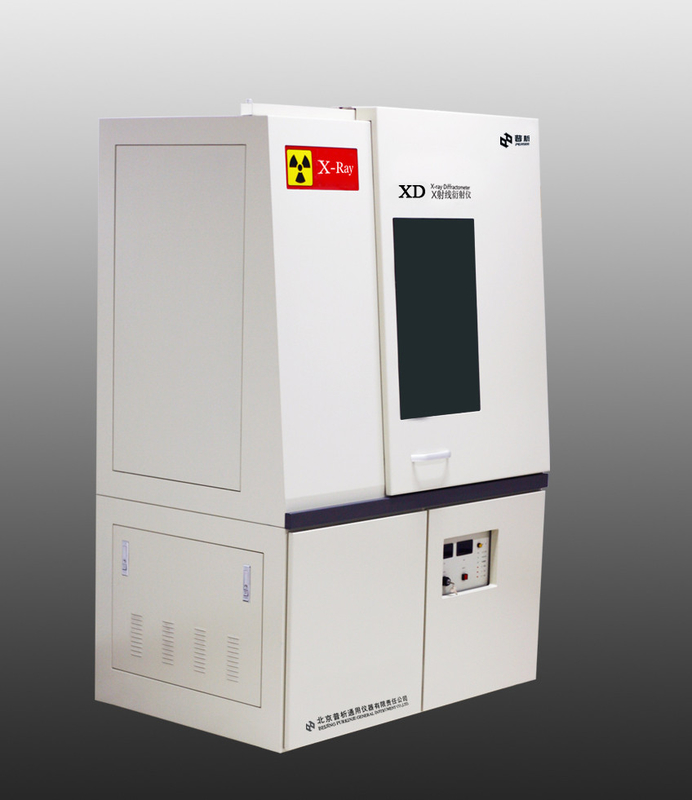

X-ray Powder Diffractometer,XD-3
X-ray powder diffractometer is the basic instrument on studying and indentifying the composition and structure of material. The applied field is showed as follows:

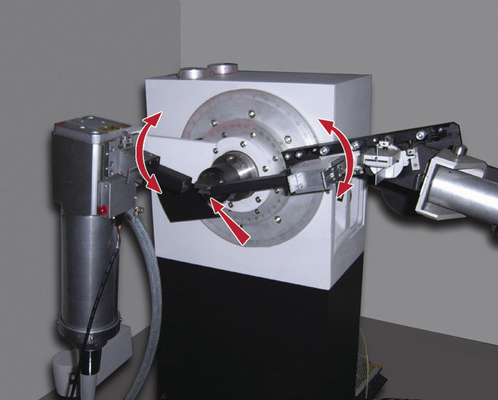

XD-3 is with vertical multifunction goniometer (θs-θd) which is fit for the samples from normal powder and massive solid to very big and irregular solid and ropy liquid. Its precise design and strong hardware and software could fulfill any testing and researches on the microstructure of materials.
The type of vertical θs-θd goniometer means the sample holder fixed, the X-ray source and detector turned.
Features & Functions
Applications:
Specifications:
X-ray tube |
Type |
Cu target, NF model |
Focus dimensions |
1.0 x10mm² |
|
Maximum power |
2KW |
|
X-ray generator |
Maximum power |
3KW |
X-ray tube voltage |
15-60kV |
|
Tube voltage step width |
1kV |
|
X-ray tube current |
6-50mA |
|
Tube current stop width |
1mA |
|
Tube voltage, tube current stability |
≤0.01% (Supply voltage fluctuations 10%) |
|
Alarm device |
kV low, kV overtop, mA overload, water discharge, temperature |
|
Ray power protection |
0.35, 0.7, 1.0, 1.5, 2.0, 2.7kW six grade |
|
Goniometer |
Scanning radius |
180mm |
Scanning mode |
θs-θd linkage or θs-θd single move |
|
Measurement range |
-30°-80°(θs) -30°-160°(θd) |
|
Operation mode |
Continuous scanning, Timing Step Scanning, Constant Step Scanning |
|
Continuous scanning speed |
0.125°-120°/min |
|
Maximum speed |
120°/min |
|
Angle repeatability |
0.0006° |
|
Measurement accuracy |
0.001° |
|
Minimum step size |
0.00025° |
|
Divergence slit (DS) |
0.15°, 0.5°, 1°, 2° |
|
Anti- scattering slit (SS) |
0.5°, 1°, 2° |
|
Receiving Slit (RS) |
0.1,0.15,0.3,0.45,0.6,1,2mm |
|
Zero dedicated slit |
0.02mm |
|
Detection- Counter |
The type of detector |
Scintillator Counter |
|
Crystal type |
Nal |
|
Pulse- height analyzer(PHA) |
Output High Voltage 0-1000V stability ≤0.01% (8h) |
Machine cabinet |
Cabinet size (mm) |
1200(L) x800(W) x1850(H) |
Machine weight (kg) |
500 |
|
Observation window |
600(H) x400(W) x10(T)lead glass |
|
X-ray leakage |
≤0.1μ Sv/h(non deduction natural background) |
|
Safety precautions |
Door interlock protection (The door to a designated location, light gates open only to produce X-ray) |
|
Filter |
Ni filter |
Corresponding Cu target |
Integrated whole stability |
|
≤0.3% |
Automatic temperature control of circulating water cooling device (indoor unit + outdoor unit)
Model |
CW-2F |
|
Cooling power (W) |
4000 |
|
Power supply |
220V, 50Hz |
|
Input power (W) |
1800 |
|
The largest dimensions (mm) |
Indoor Unit |
600(L) x400(W) x960(H) |
Outdoor Unit |
840(L) x300(W) x540(H) |
|
Weight (kg) |
Indoor Unit |
50 |
Outdoor Unit |
35 |
|
Noised B (Indoor Unit) |
≤55 |
|
Cooling water pressure (MPa) |
0-0.7 |
|
Cooling water flow (L/min) |
≥3.5 |
|
Ambient temperature |
5℃-40℃ |
|
Temperature control range |
-49℃-50℃ |
|
Temperature control accuracy |
±1℃ |
|
Warning device |
Temperature, water shortage |
Optional Accessories & Consumables
Monochromator Annex
Punch machine
High temperature annex (≤1500℃)
Whirl sample holder
Multi- function analysis software
